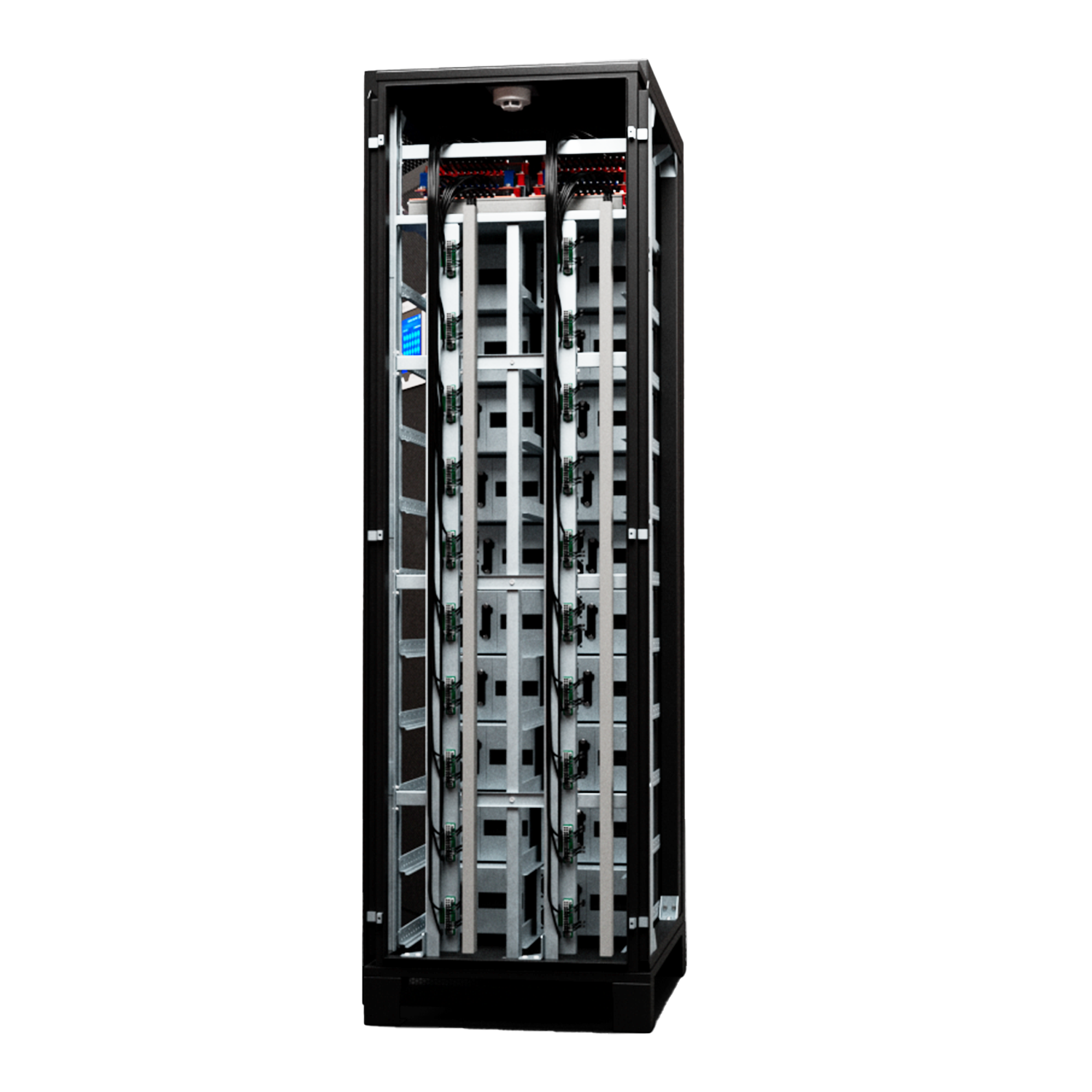

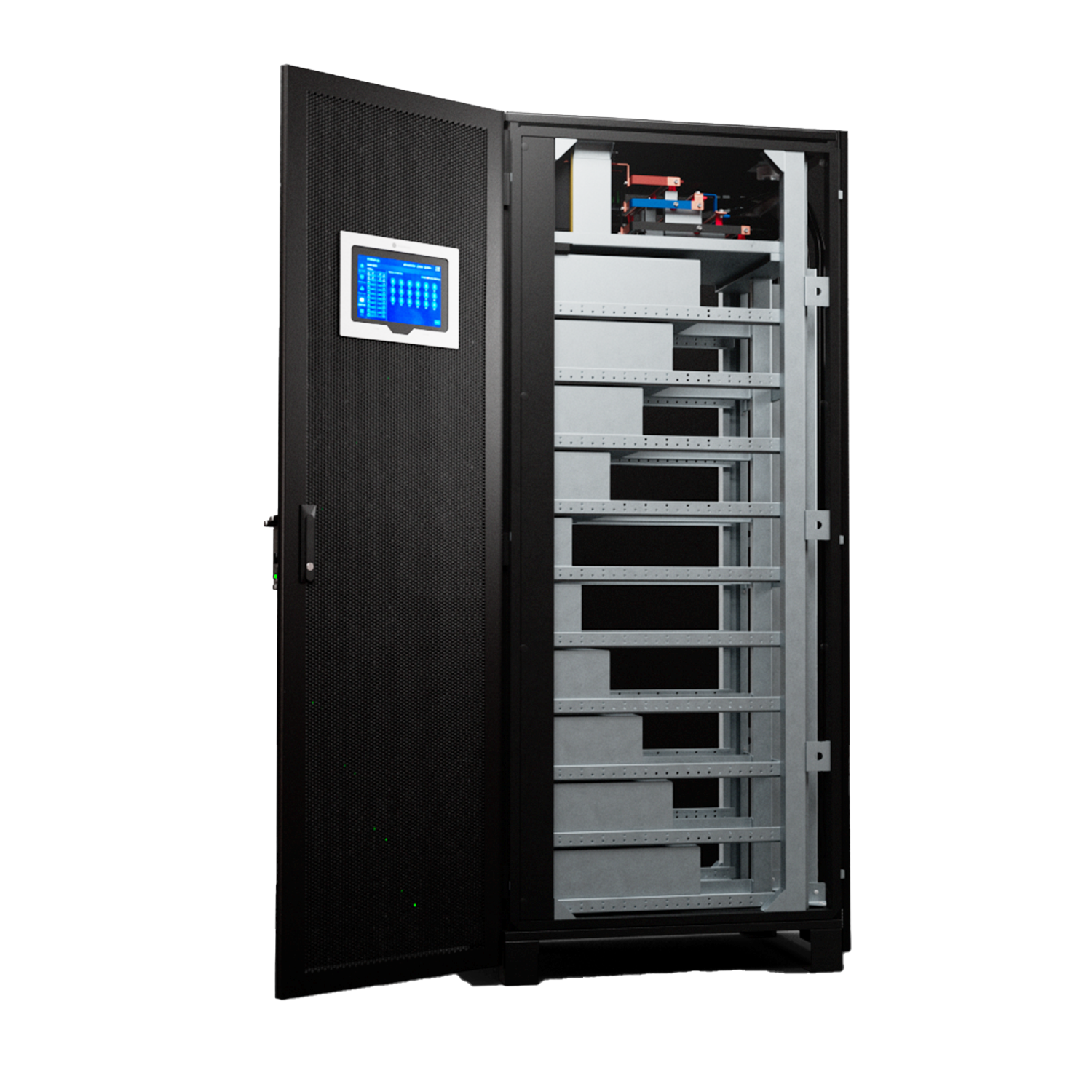

BIL 40-50 100Ah

Lithium Ion Battery Bank
40, 50, 100 AH
Capacity
3 Year Warranty
Manufactured in Mexico

The Lithium Ion Battery Bank adapts to the backup capacity required by your application. Its technology allows you to keep a history in case of battery failure and issues a preventive warning. Its design allows the interconnection of other modules and additional cabinets. These features offer you greater security to back up your operations without interruption.

  • Double Insulation: electrical and physical
  • Fire protection per Module
  • Automatic module disconnection in case of failure
  • Plug and Play Modular Design
  • Scalable per Module and per Cabinet
  • Intelligent Battery Testing
  • Intelligent Current Equalization
  • Intelligent Voltage Equalization
  • Fault history and preventive warning
  • Adaptive State-of-Charge Management

Characteristics

Icono rayo
Double Insulation: electrical and physical
Improves safety and minimizes the risk of electric shock. Double insulation adds an additional layer of protection to ensure user safety.
Icono rayo
Fire protection per Module
It can detect and extinguish the source of the fire quickly, accurately and effectively. In addition, it will extinguish the fire at the initial stage.
Icono rayo
Automatic disconnection of the Module in case of failure
Its parallel modular design allows an automatic module disconnection in case of failure. This will not affect the system and the other modules can operate normally.
Icono rayo
Plug and Play Modular Design
5 minutes of maintenance, reduce OPEX cost.
Icono rayo
Scalable per Module and per Cabinet
Its modular design allows the capacity of the modules or cabinets to be expanded. This helps to reduce CAPEX cost.
Icono rayo
Intelligent Battery Testing
Thanks to its parallel design, the capacity of each battery can be tested separately. There is no need to interrupt the power supply.

Applications

Technical Specifications

Model BIL-IND 240V40AH BIL-IND 240V50AH BIL-IND 240V100AH
Nominal Battery Voltage (V) 57.7
Nominal Battery Capacity (Ah) 40 50 100
Max. Energy (kWh) 2.3 2.3 5.7
DC/DC Output Voltage (V) 240*2 (In Series or in Parallel)
Output Power (kW) 10 5
Dimensions (H x W x D) (mm)  153 x 223 × 665 132 x 440 x 665
Weight (kg) 36 38 50
Model BBIL-IND 40206C BBIL-IND 50204C BBIL-IND100121C
Maximum Energy (kWh) 46 58 69
Maximum Output Voltage (V) 240/±240/480
Power Output (kW) 200 60
Spaces for Battery Packs 20 12
Power Unbalance ≤5%
State of Charge Accuracy ≥95%
Available Communications RS485, CAN, TCP/IP and Dry Contacts
Operating Temperature (°C) 0~40 (+15~+30 recomendado)
Maximum Operating Altitude (msnm) 0 ~ 2000 (Above 2000 msnm will derate)
Dimensions (H x W x D) (mm) 2000 x 600 × 860
Weight (kg) 960 1000 860
Maximum number of Parallel Cabinets 8
Optional Distribution Cabinet, Fire Extinguisher, Network Wiring Ducting
Self-discharge rate ≤3% (0-30°C/Month)
Model 40AH 50AH 100AH
Type LFP
Dimensions (H x W x D) (mm) 133 x 27 x 148 120 x 50 x 160
Weight (kg) 1 1.1 2
AH Capacity 40 50 100
Discharge Rate 6C 4C 1C
Charge Rate 1C
Voltage (V) 3.2
