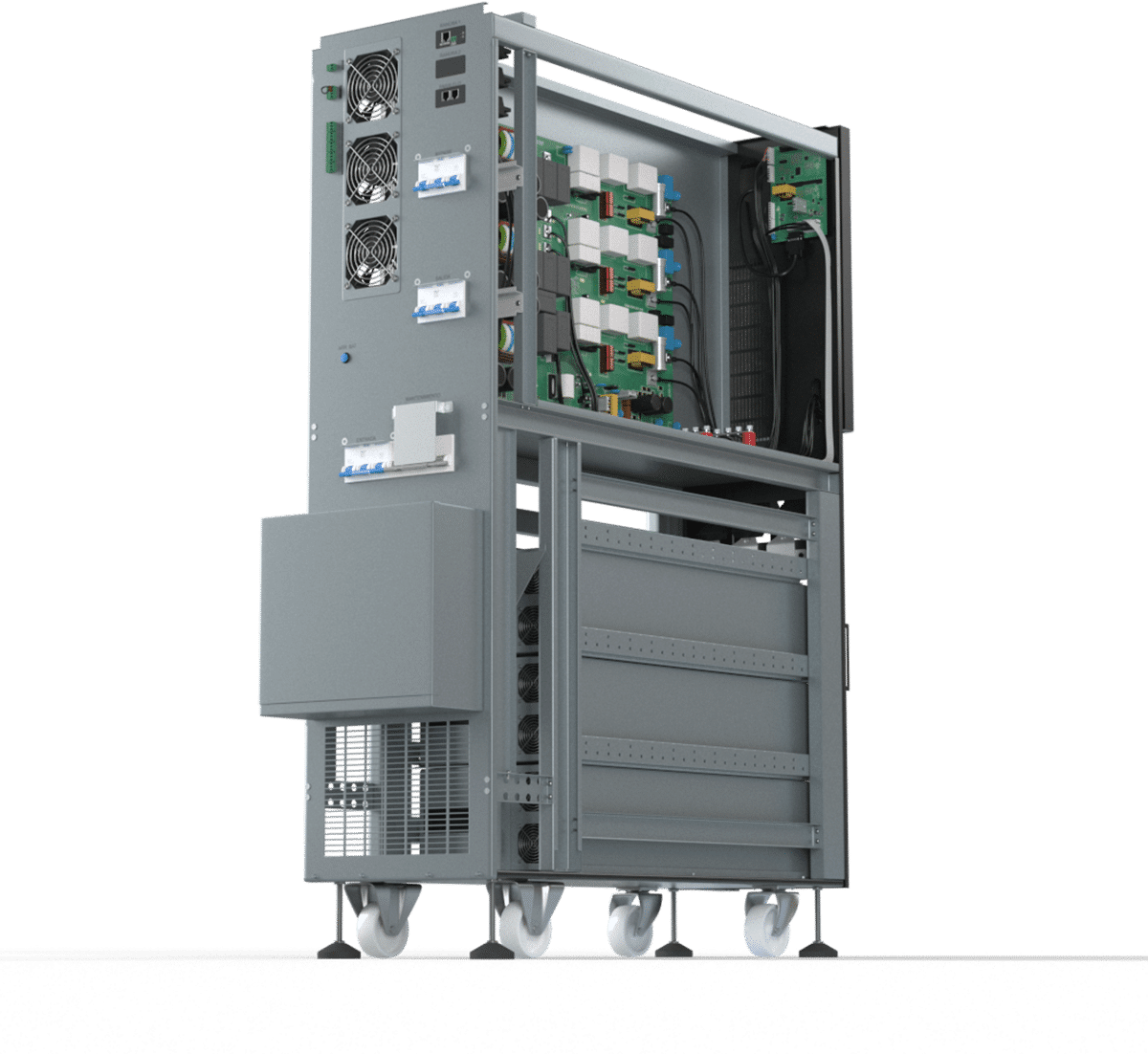

UPS-IND HF 1300 M1 (Lithium Ion)

Uninterruptible Power Supply (UPS)
10 ~ 30 kVA
Capacity
2 Year Warranty
Manufactured in Mexico

The UPS-IND HF 1300 M1 model has a better performance, due to its faster and more efficient process. It favors a longer life (8 to 10 years) both in the UPS and in the Lithium Ion battery bank. The latter offers a 55% reduction in footprint and is 50% light

  • Dual input power supply: Normal and Bypass
  • Long life Lithium Ion batteries
  • Flexible battery configuration
  • Footprint Reduced
  • Lower carbon footprint
  • Parallel technology
  • UL-1778 Certificate

Características

Icono rayo
Dual Input Power Supply
Dual Input Power Supply (Normal and Bypass)
Icono rayo
Long life lithium-ion batteries
They offer higher energy density and extend the life of your equipment by 8 to 10 years.
Icono rayo
Flexible battery configuration
Flexible battery configuration (1 to 3 modules of 50 Ah)
Icono rayo
Footprint Reduced
The M1 generation UPS provides a better user experience and better footprint, with a 55% footprint reduction.
Icono rayo
Lower carbon impact
Lithium-ion batteries contribute to a lower carbon footprint.
Icono rayo
Parallel technology
Paralleling technology for up to 4 units.

Video

Applications

Technical Specifications

Model UPS-IND HF
1310 M1
1315 M1
1320 M1
1330 M1
Capacity (W/ VA) 10000/10000 15000/15000 20000/20000 30000/30000
Voltage (Vca) 208/220
Overload Protection Thermal magnetic input circuit breaker and Thermal magnetic bypass circuit breaker
Voltage Range (Vac) 156 a 260 (Line to Line): -29%, +18%
Phase Three Phase Star, 3 Phases + Neutral + Ground, optional: Delta (3 Phases + Ground)
Frequency Range (Hz) 40 ~ 70
Input Power Factor ≥ 0.99 at full load
THDi ≤ 3%
Model UPS-IND HF
1310 M1
1315 M1
1320 M1
1330 M1
AC to AC Maximum Efficiency 94 %
Overload Protection Thermal magnetic output circuit breaker
Output Power Factor 1.0
Voltage (Vac) 190/200/208 ±1%(L-L)±%
Voltage Regulation Range (Vac) ≤+/- 1 %
Frequency (Hz) 60 +/- 0.1% (Battery mode), Optional: 50 Hz
Waveform Pure sinosoidal wave
Harmonic Distortion THDv ≤ 1% (Linear load), ≤ 4% (Non linear load)
Transfer Time (ms) 0.0 ms(True On Line)
Connection Type Three Phase Star, 3 Phases + Neutral + Ground, optional: Delta (3 Phases + Ground)
Overload << 105% continuous, 105% to 110% 60 min., 110% to 125% 10 min., 125% to 150% 60 s., > 150% immediate switch to Bypass
Energy return Does not support energy return
Model UPS-IND HF
1310 M1
1315 M1
1320 M1
1330 M1
Voltage (Vcd) +120(96+120)
Battery Capacity 50 Ah
Battery Type 15 standard (extended time available upon request
Full load backup time (min) 5 min Standard (Extended Time available upon request)
Maximum Load Current (A) Maximum Load Current (A) 0.1 – 1C (default 0.5 C)
Internal Battery Bank 1 package 2 package 3 package
Useful life time 8 to 10 years at 40ºC. At higher temperatures their useful life is considerably reduced. To keep the batteries healthy we recommend recharging them at least once every 3 months and to avoid damage recharge them every 6 months.
Model UPS-IND HF
1310 M1
1315 M1
1320 M1
1330 M1
Audible Noise (dB) <60, at 1 meter <65, at 1 meter
Operating Temperature (°C) -5 ~ 40
Relative Humidity 0 ~ 95% without Condensation
Maximum Operating Altitude (m.a.s.l.) 2,000 at 100%
Cabinet Baked electrostatic Epoxy coated Steel
Dimensions, height x width x depth (mm) 1250 x 378 x 995
UPS Weight (kg) 93 / 135 / 150 94 / 177 / 170 94 / 177 / 172 112 / 220 / 198
UPS packaged weight (kg) 199 241 284
Model UPS-IND HF
1310 M1
1315 M1
1320 M1
1330 M1
Inverter 3 level IGBT technology for higher efficiency and minimized interference to grid
Rectifier High Efficiency PFC type with IGBT technology
Output Isolation Transformer Optional
Battery Status Real Time Online/Discharge Information
Thermal Dissipation (kBTU / h) 2.05 3.07 4.10 6.15
Internal Bypass Two Bypass Modes: Automatic Static & Manual Bypass Switch for Maintenance
Paralleling N + 1 (up to 4 units)
Certifications UL-1778, CE-62040-1, CE 62040-2, ISO 9001:2015
Communications Interface RS485 + EPO, 5 dry contact output signals, 1 dry contact input, RS232, SNMP network card
Digital Touch Screen Displays: Input and output voltage, Load capacity, Battery voltage, Operating Status Mimic and LEDs Indicators
Alarms Low Battery, Abnormal Input, UPS Failure, etc.
Protection Low Battery, Overload, Short Circuit, Over Temperature, etc.
