UPS-IND 5100
Uninterruptible Power Supply (UPS)
UPS-IND 5100
Uninterruptible Power Supply (UPS)
1500 VA
CapacityThe Single-Phase Interactive UPS protects your home computers, security systems and routers against power outages. Its LCD display facilitates control and its batteries are easily replaced.
- Interactive UPS
- BOOST type voltage regulator
- Integral LCD display
- Surge protection
- Easy battery replacement
- Cold start for 120 Vac models
Features
Interactive UPS

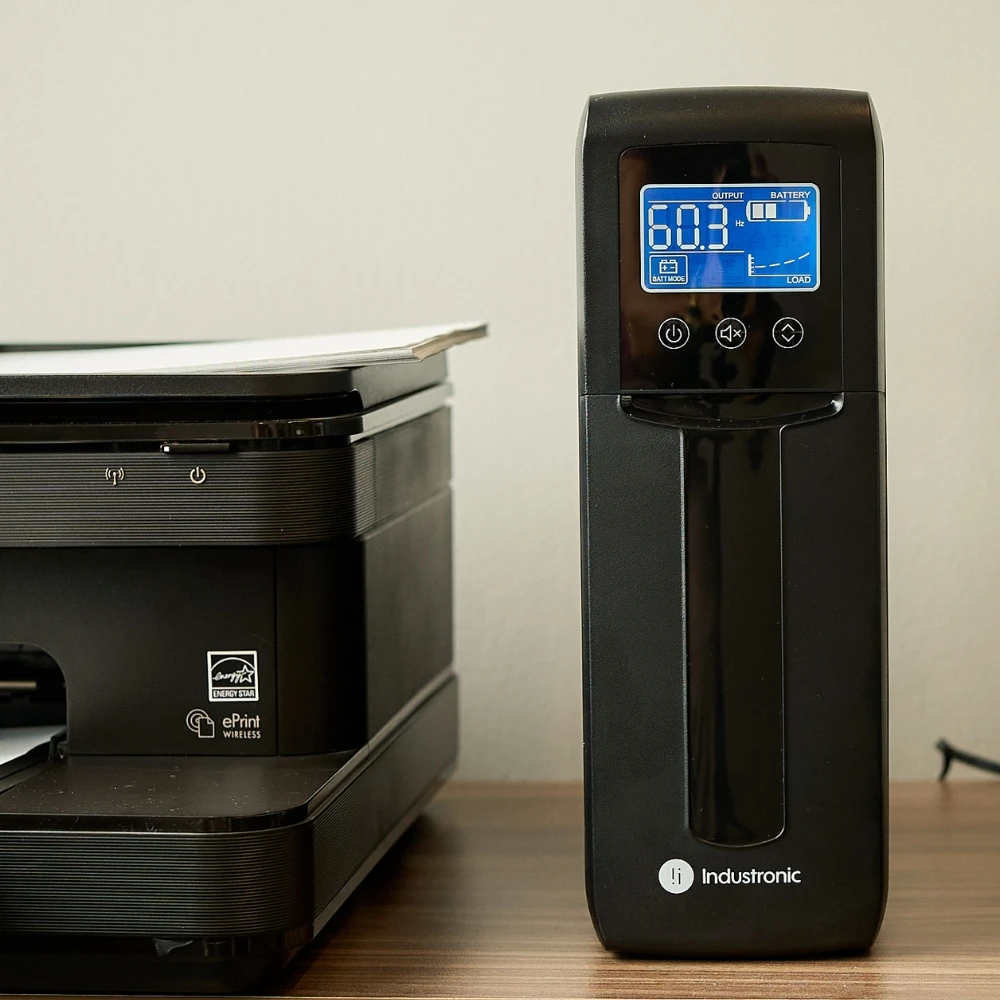

BOOST type voltage regulator
Integral LCD display

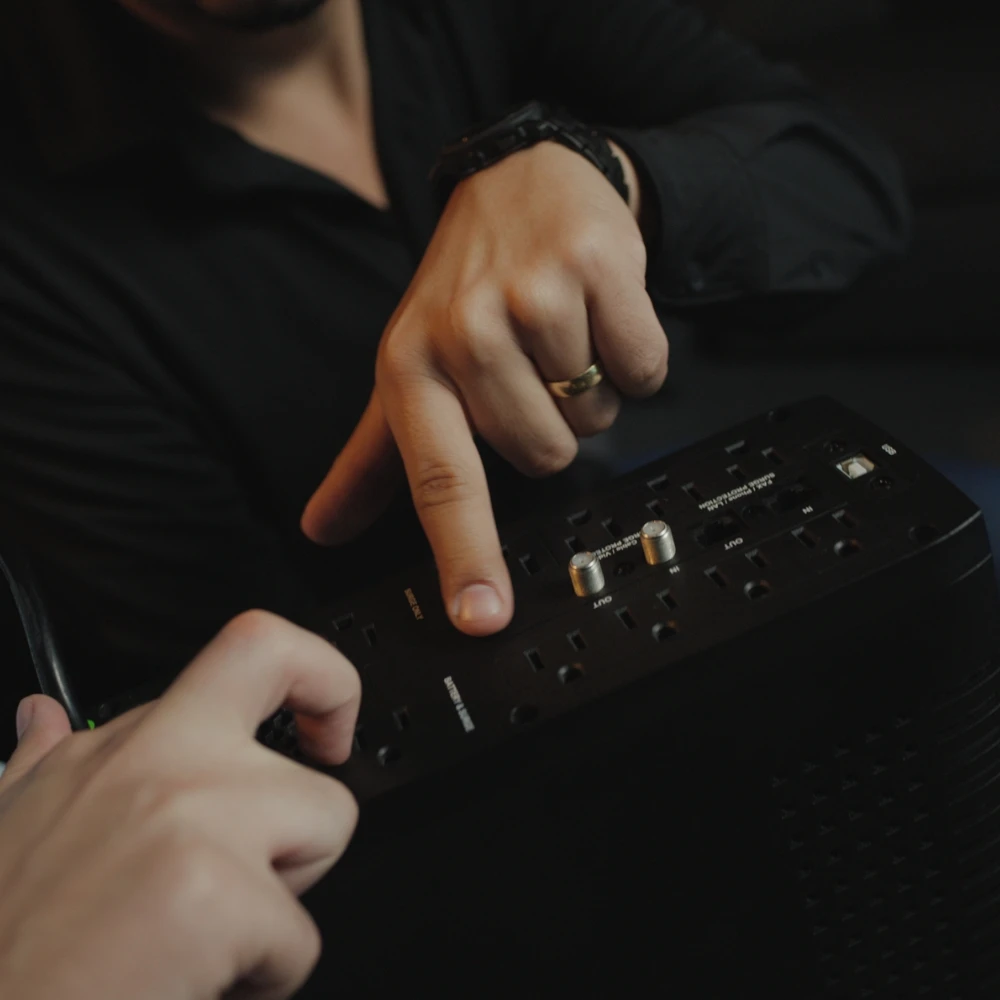

Surge protection
Easy battery replacement
Cold start
Applications
Audio Visual Recording Equipment
Protects cameras, mixers and recorders from power surges and electrical fluctuations.
Audiovisual Systems
Ensure the operability of audiovisual equipment against electrical fluctuations.
Call Centers
Avoid interruptions in call centers by protecting servers and communication equipment.
Computer equipment
Protect computers and peripherals against power surges and surges.
Convenience Stores
Ensures the operability of payment and refrigeration systems in the event of power outages and peaks.
Electronic equipment and accessories
Avoid damage to televisions, computers and audiovisual equipment from power surges and electrical variations.
Kitchen appliances
Protects ovens, refrigerators and microwaves from power surges and electrical fluctuations.
Office
Protect computers and critical systems against voltage spikes, variations and power outages.
Point of Sale
Ensure operational continuity of payment terminals during power outages.
Residential
Avoid damage to household appliances and entertainment systems in the event of electrical variations.
Routers, Telecom, VoIP
Protect network and telecommunications equipment from power outages and voltage spikes.
Technical Specifications
| 5110 I1 | 5115 I1 | |
| Capacity (VA/W) | 1000 VA/600W | 1500 VA/900W |
| Overload protection | Thermomagnetic switch | |
| Voltage (Vca) | 110, 120 Vca | |
| Accepted voltage range | 81-132, 86-142 Vca | |
| Phases | 1 phase + neutral + ground | |
| Frequency (Hz) | 50/60 Hz (automatic selection) | |
| Maximum input current | 12 A | 18 A |
| 5110 I1 | 5115 I1 | |
| Output power factor | 0,6 | |
| Voltage (Vca) | 110, 120 Vca | |
| Battery voltage regulation range | ±5% | |
| Frequency (Hz) | 50/60 Hz ±1Hz | |
| Waveform | Simulated sinusoidal | |
| Transfer time (ms) | 6ms typical, 10 ms maximum | |
| Maximum output current | 5 | 7,5 |
| 5110 I1 | 5115 I1 | |
| Voltage (Vcd) | 12 V/ 9 Ah X 1 | 12 V/ 9 Ah X 2 |
| Battery type | Lead acid (sealed and maintenance-free) | |
| Backup time (min) | 1 PC(200W) 6 minutes | 1 PC(200W) 30 minutes, 2 PC (400W) 10 minutes |
| Batteries | Internal | |
| Battery recharge time | 6 to 8 hours (90% recovery) | |
| Service life | 3 to 5 years at 25ºC. At higher temperatures, the service life is considerably reduced. To keep the batteries healthy, we recommend recharging them at least once every 3 months and, to prevent damage, recharging them every 6 months | |
| 5110 I1 | 5115 I1 | |
| Input connection | 1 NEMA 5-15P | |
| Output connection | 5 NEMA 5-15R Backed, 5 NEMA 5-15R Surge Protected | |
| Audible noise (dB) | Less than 40 dB at one meter | Less than 45 dB at one meter |
| Operating temperature (°C) | 0-40 °C | |
| Relative humidity | 0-90 % | |
| Maximum operating altitude (m.a.s.l.) | 2000 masl | |
| Dimensions, height x width x depth (mm) | 280 x 99 x 288 | 280 x 99 410 |
| UPS weight (kg) | 8,5 | 12 |
| 5110 I1 | 5115 I1 | |
| LCD display | Input and output voltage, input and output frequency, load level in VA, load level in watts, battery capacity, estimated remaining operating time | |
| Alarms | 5110 I1 | 5115 I1 |
| Battery mode | Sound every 10 seconds | |
| Low battery | Sound every second | |
| Overload | Sound every half second | |
| Failure | Continuous sound | |
| Protection | Output discharge, overload, and short-circuit protection | |
| Certifications | NOM | |
