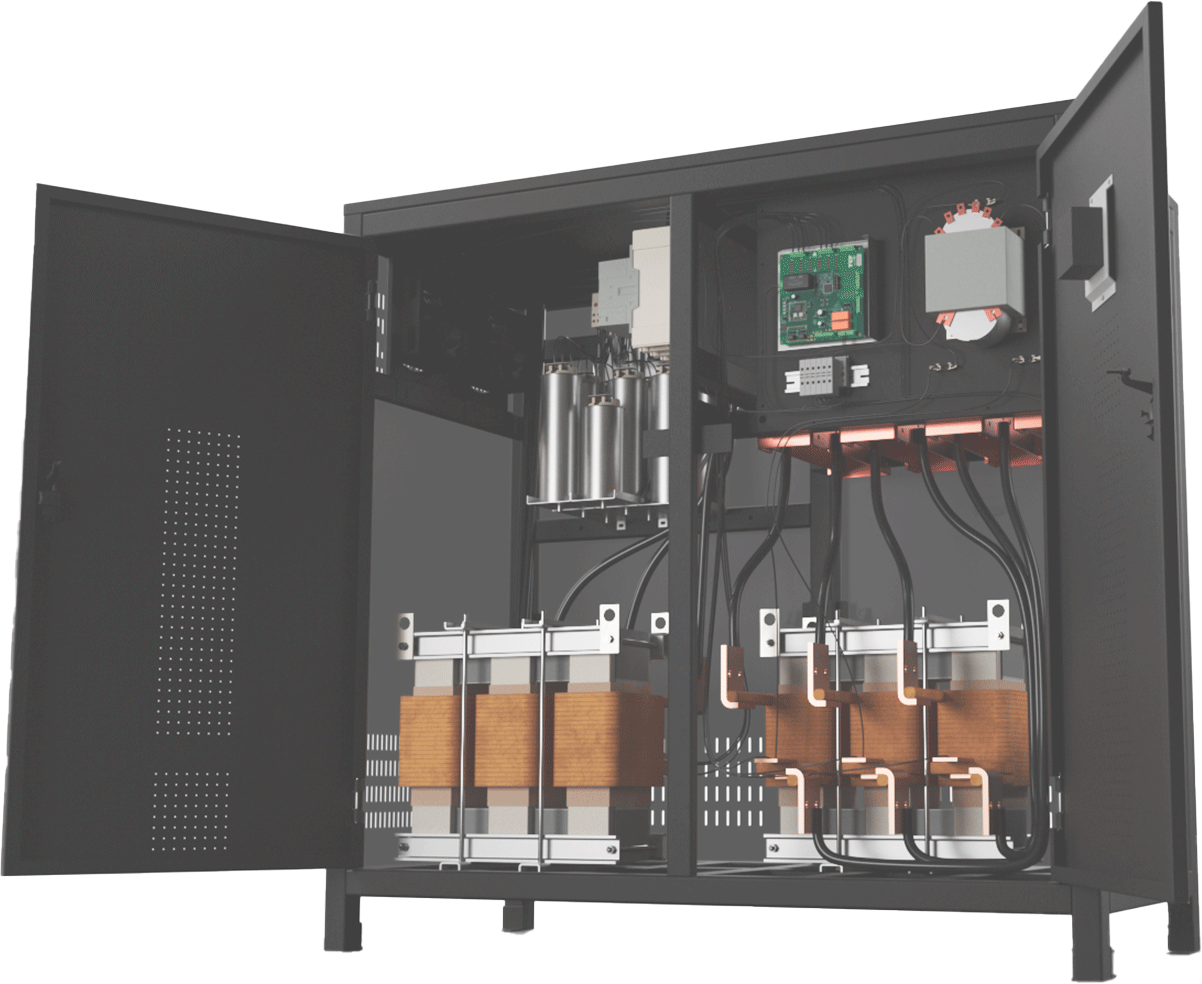

FAPA-IND 53000
Harmonic Filter
FAPA-IND 53000
Harmonic Filter
50~1000 kVA
CapacityThe FAPA-IND Adaptive Harmonic Filter is designed to reduce harmonic current distortion at 5% full load and 8% to 30% load. It is compliant with Grid Code 2.0 and IEEE 519, in addition to improving the service life and prolonging the connected loads, as well as improving the Power Factor.
- Impedance 5%.
- Designed to work in 2 or 3 phases.
- Supports overload of up to 200% for 3 minutes
- Built in harmonic distortion meter
- Effective filtering from 50% of the load onward
Impedance 5%
Phase Adjustment
Overload protection
Harmonic distortion meter
Delta or star configuration
Applications
Automated Assembly Lines
Maintain continuous operation of automated production lines during power failures.
CNC Machinery
Ensure accuracy of CNC machinery against electrical fluctuations and frequency variations.
Computer Rooms
Protect servers and network equipment against electrical fluctuations and power surges.
Data Centers
Ensure continuity and stability in servers and critical storage systems.
Heavy Industry
Protect high power equipment against overloads and frequency variations.
IT Servers
Protect servers and network equipment against power fluctuations and voltage drops.
Lab equipment
Ensure the accuracy of laboratory equipment by protecting it from electrical variations.
Machinery
Protect industrial machinery from power surges and voltage drops.
Robotics
Maintain the accuracy of robotic systems during power fluctuations and power surges.
UPS Uninterruptible Power Supply and Voltage Regulators
Ensure additional protection against voltage spikes for your UPS equipment and voltage regulators.
Water pumping systems
Ensure continuous operation of water pumps during power failures and frequency variations.
Technical Specifications
| FAPA-IND Model | 53100 | 53150 | 53200 | 53300 | 53500 | 53800 | 531000 |
| Capacity(kVA) | 100 | 150 | 200 | 300 | 500 | 800 | 1000 |
| Voltages (VAC) L-L | 440/460/480 | ||||||
| Phases | 3 phases / 2 phases | ||||||
| Frequency (Hz) | 50-60 Hz | ||||||
| Usage (W) | 1035 | 1340 | 1514 | 1932 | 2509 | 4206 | 4400 |
| Max. constant current Amp | |||||||
| Characteristic impedance | 5% | ||||||
| Characteristic impedance | 95% @ 110% charge / 80% @ 150% charge | ||||||
| Overload | 150% to 1 minute maximum | ||||||
| Efficiency | 99.0% | 99.2% | 99.2% | 99.4% | 99.5% | 99.5% | 99.6% |
| Reduction of current harmonic distortion | THDi% 8% at 30% load, THDi% 5% at full load | ||||||
| Maximum recommended voltage unbalance | ±1% | ||||||
| Filter type | Reject reactor with delta capacitors | ||||||
| Power meter | 53100 | 53150 | 53200 | 53300 | 53500 | 53800 | 531000 |
| Active power, apparent power, energy, current and power factor | Class 0.5 (0.5% error) | ||||||
| Reactive power | Class 1 (1% error) | ||||||
| Voltage and frequency | Class 0.2 (0.2% error) | ||||||
| THDv – THDi | Class 1 (odd 1-31) (1% error) | ||||||
| International meter standards | According to: IEC – CE – UE – RoHS | ||||||
| Physical | 53100 | 53150 | 53200 | 53300 | 53500 | 53800 | 531000 |
| Dimensions HxWxD (mm) | 1300 x 750 x 650 | 2000 x 1000 x 800 | |||||
| Weight (kg) | 180 | 210 | 230 | 300 | 500 | 650 | 700 |
| Temperature ranges | -10°C to +40°C | ||||||
| Relative humidity | From or up to 95% without condensation | ||||||
| Cabinet | Steel with baked-on electrostatic epoxy coating | ||||||
| Maximum operating altitude (m.a.s.l.) | 2000 meters above sea level | ||||||
